Cover Installation Note

  1. Install the cover to the housing so that there is no gap between the housing and the cover.
    CAUTION:
    • If there is a gap between the housing and the cover, water may penetrate through the gap, causing a front combination light malfunction. Verify that there is no gap between the cover and the housing.

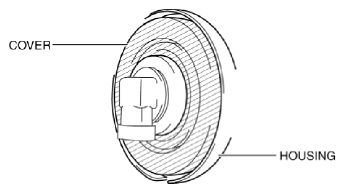

    Fig 1: Identifying Cover And Housing
    G10962742Courtesy of MAZDA MOTORS CORP.
