Front Console Removal/Installation

CAUTION:
  • Affix protective tape to the position shown in the figure.

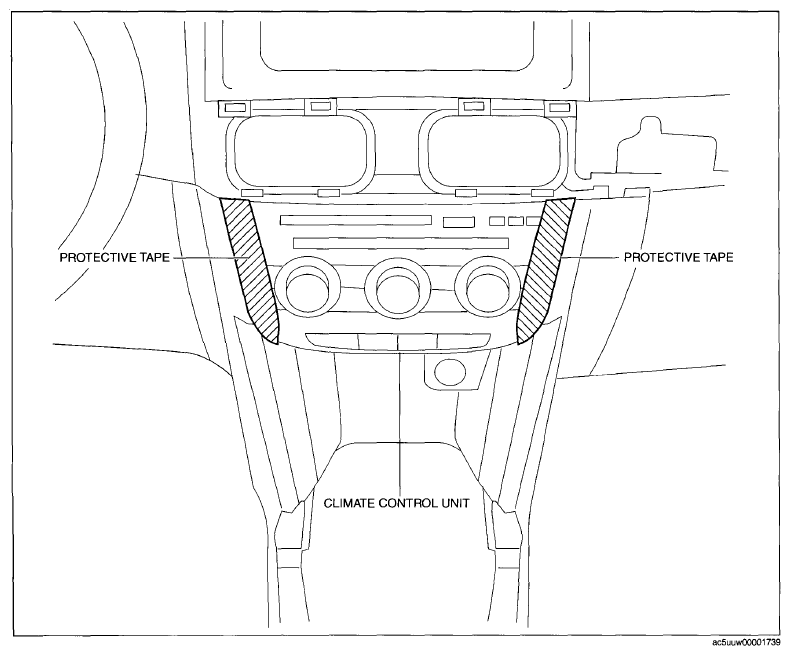

Fig 1: Identifying Climate Control Unit Protective Tape
G09077208Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    3. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Take the shaded area shown in the figure, and remove the front console in the direction of the arrow in the order of (1), (2), (3), (4) while detaching clips A, clips B, hooks C, guides D.

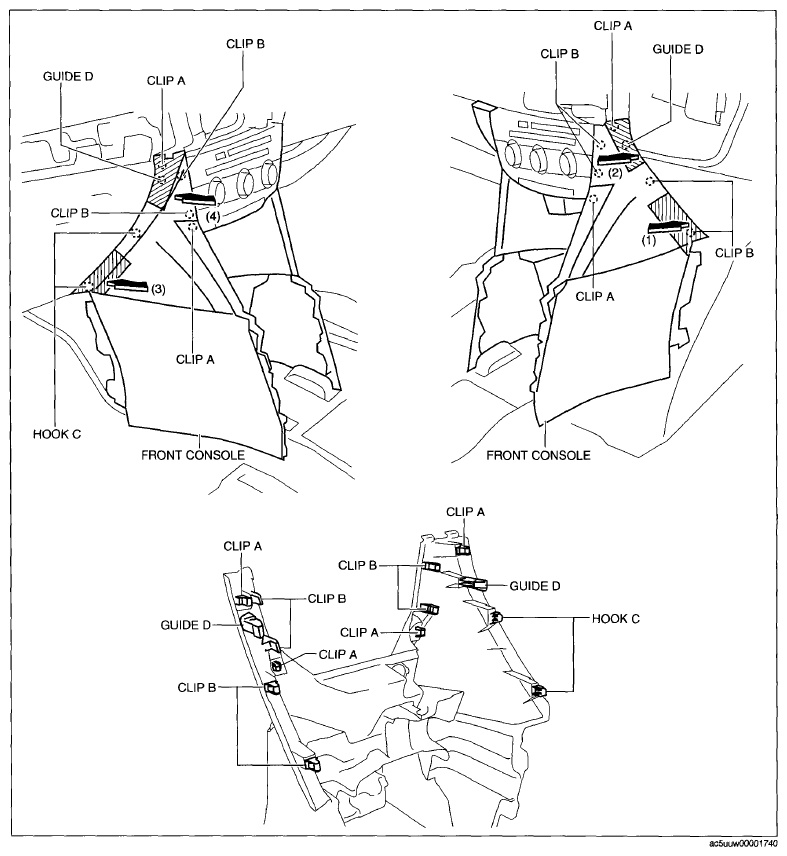

    Fig 2: Removing Front Console Clips
    G09077209Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the front accessory socket connector.
  5. Pull the front console in the direction of the arrow in the order of (5), (6) and remove the front console while detaching the selector lever (ATX) or shift lever (MTX).

    ATX

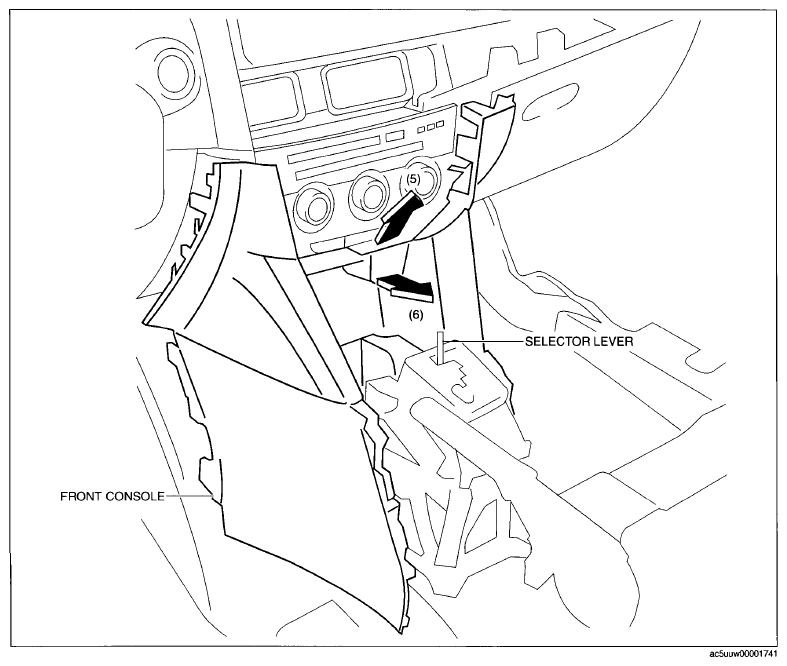

    Fig 3: Detaching Selector Lever (ATX)
    G09077210Courtesy of MAZDA MOTORS CORP.

    MTX

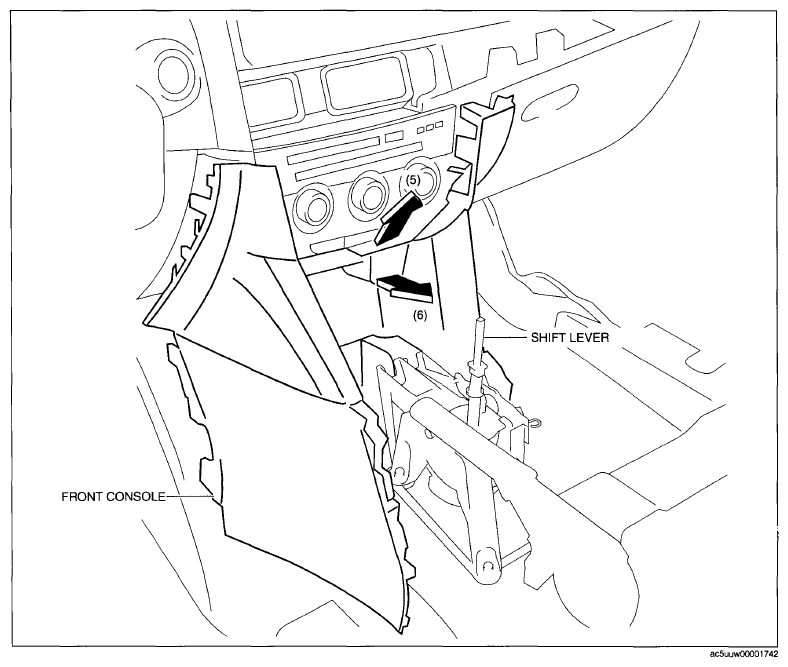

    Fig 4: Detaching Shift Lever (MTX)
    G09077211Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
