Rear Console Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    2. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove screws A.

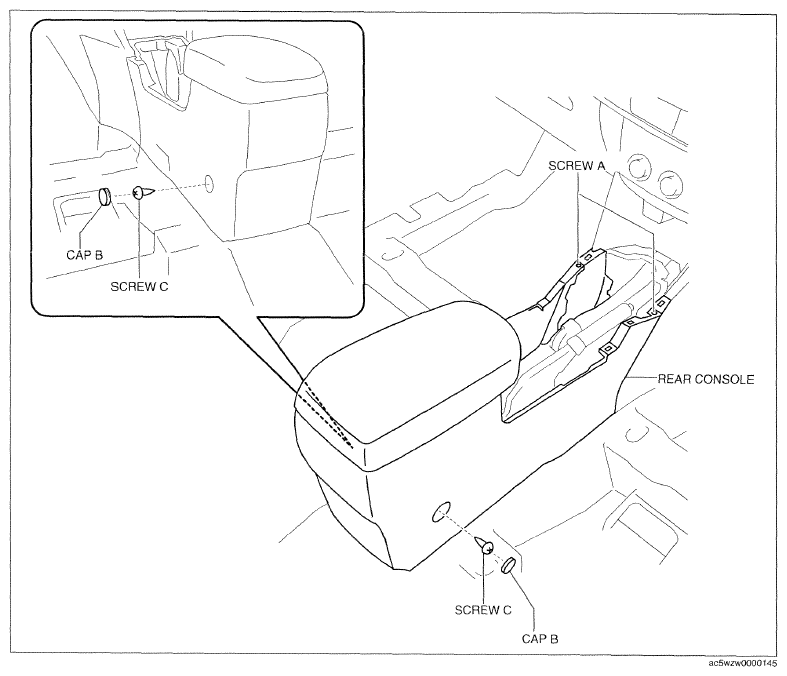

    Fig 1: Removing Rear Console Screw
    G09761664Courtesy of MAZDA MOTORS CORP.
  4. Remove caps B, then remove screws C.
  5. Pull the rear console in the direction of the arrow (1) while detaching clips D.

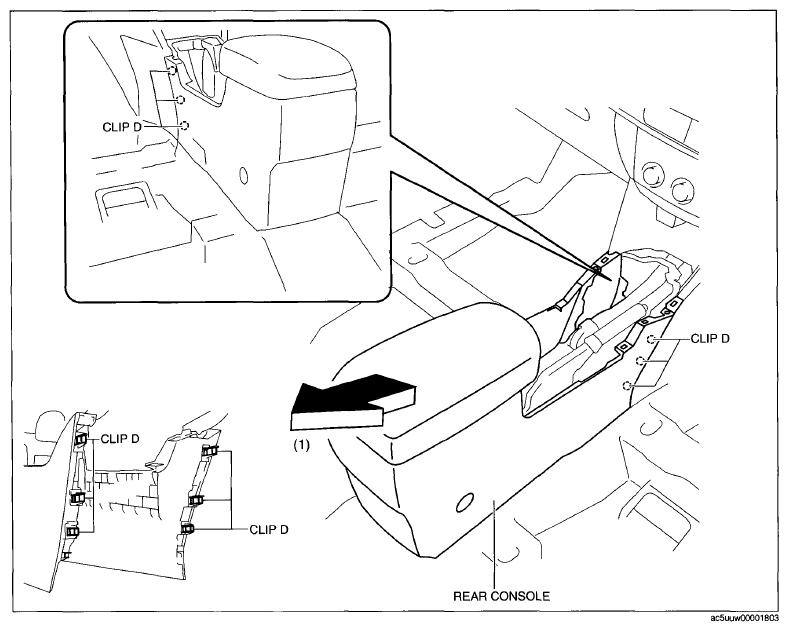

    Fig 2: Pulling Rear Console
    G09077251Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the center accessory socket connector and auxiliary jack/USB port connector.
  7. Remove the rear console in the direction of the arrow in the order of (2), (3), (4), (5) shown in the figure.

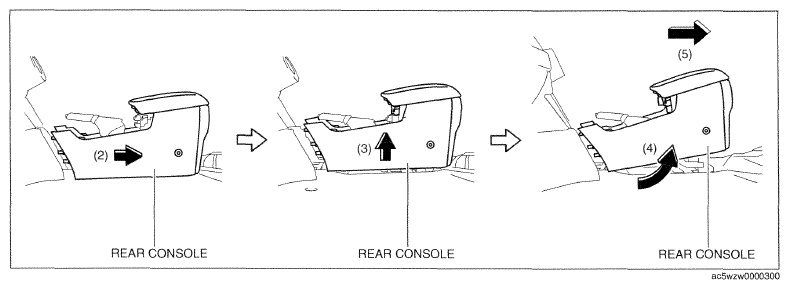

    Fig 3: Removing Rear Console
    G09761666Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
