Blower Motor Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the blower motor. (See BLOWER MOTOR REMOVAL/INSTALLATION .)
  4. Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.
    • If there is any malfunction, replace the blower motor. (See BLOWER MOTOR REMOVAL/INSTALLATION .)

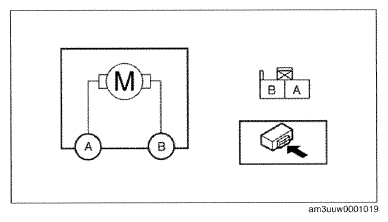

      Fig 1: Connecting Battery Positive Voltage To Blower Motor Terminals
      G09771331Courtesy of MAZDA MOTORS CORP.
