Blower Motor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove the screws.

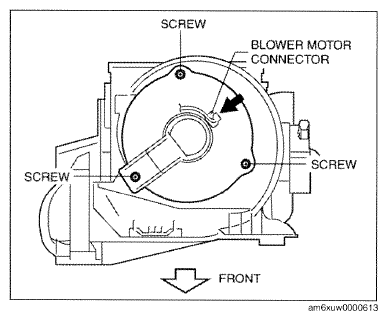

    Fig 1: Blower Motor Related Replacement Components With Torque Specifications
    G09771329Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower motor.
  6. Install in the reverse order of removal.

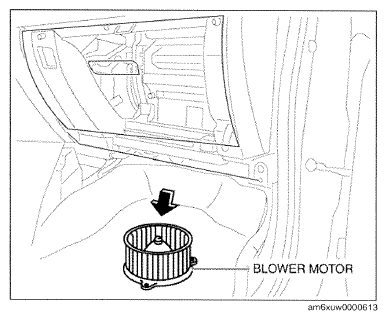

    Fig 2: Locating Blower Motor
    G09771330Courtesy of MAZDA MOTORS CORP.
