Trunk Lid Trim Removal/Installation

  1. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  2. Remove the fasteners then remove the trunk lid trim.

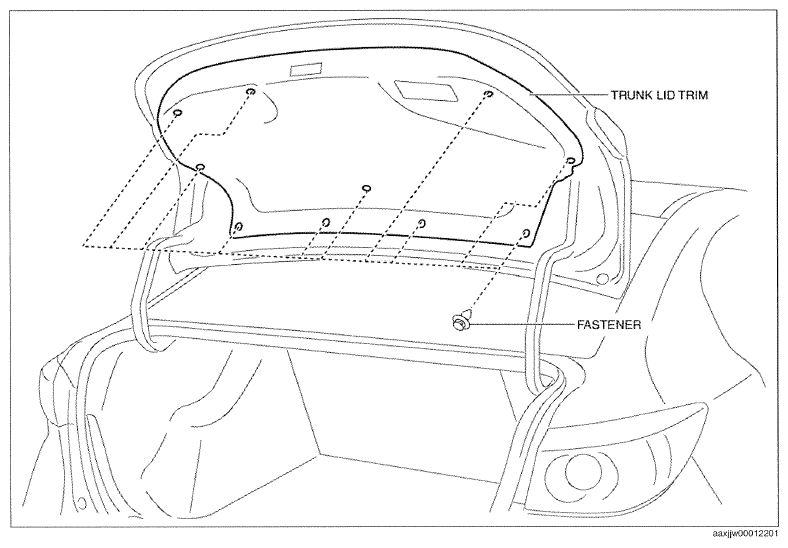

    Fig 1: Identifying Trunk Lid Trim Fasteners
    G09772386Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
