Trunk Lid Recess Removal/Installation

Using a remover tool, push hooks A in the direction of the arrow (1) shown in the figure and remove it.
CAUTION:
- If hooks A are removed or disconnected without pressing in the upper part of the trunk lid recess, hooks A could be damaged resulting in rattle noise occurring. When removing or disconnecting hooks A, always press in the upper part of the trunk lid recess.

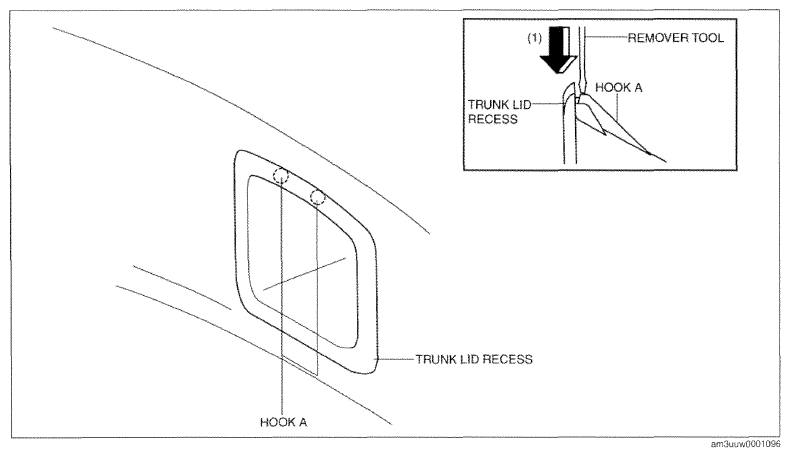

Fig 1: Pushing Hooks A Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Remove the trunk lid recess in the direction of the arrow (2) shown in the figure avoiding hooks B.

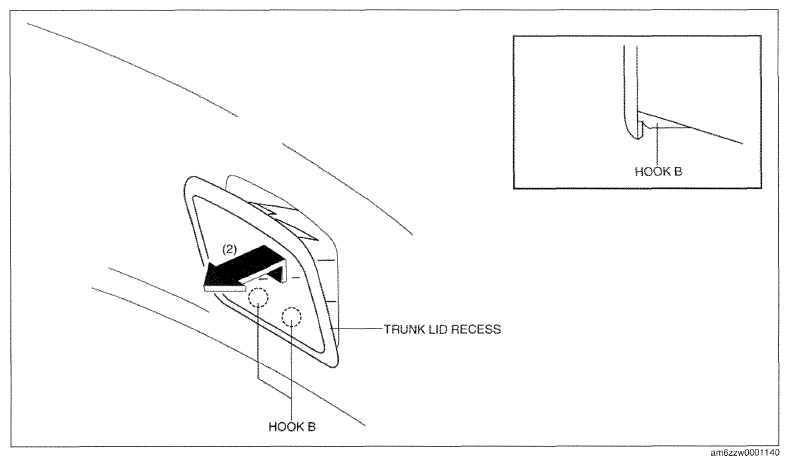

Fig 2: Removing Trunk Lid Recess
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
