Antenna Amplifier Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    4. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    8. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    9. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    11. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    12. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    13. Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
    14. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    15. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    16. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    17. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    18. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    19. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    20. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    21. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    22. Side wall (See SIDE WALL REMOVAL/INSTALLATION .) (23) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    23. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Remove clips A, B, C and D.

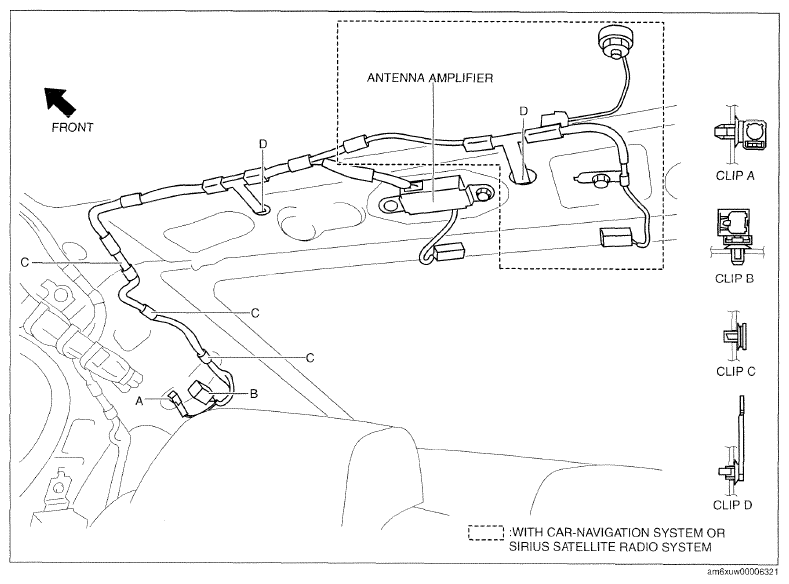

    Fig 1: Identifying Antenna Amplifier And Clips
    G09788375Courtesy of MAZDA MOTORS CORP.
  4. Remove the glass antenna terminal cover in the direction of the arrow shown in the figure.

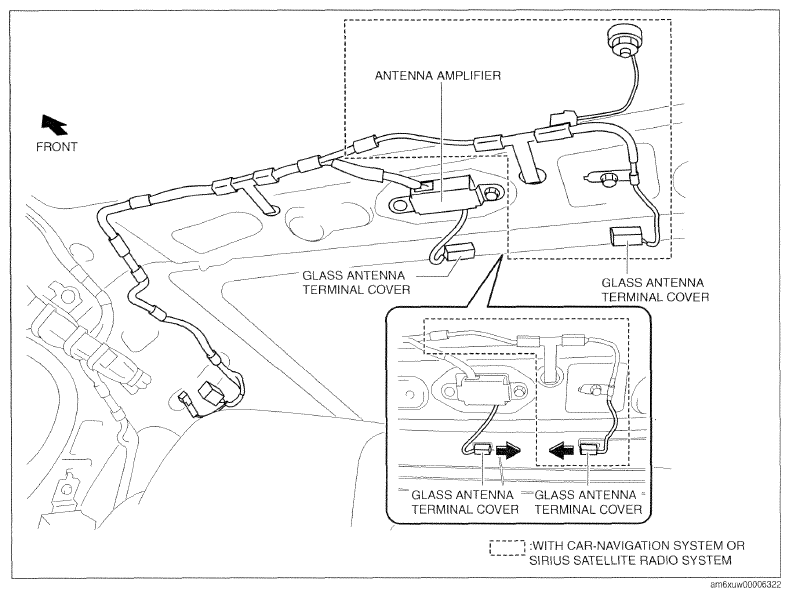

    Fig 2: Removing Glass Antenna Terminal Cover
    G09788376Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt B. (with car-navigation system or SIRIUS satellite radio system))

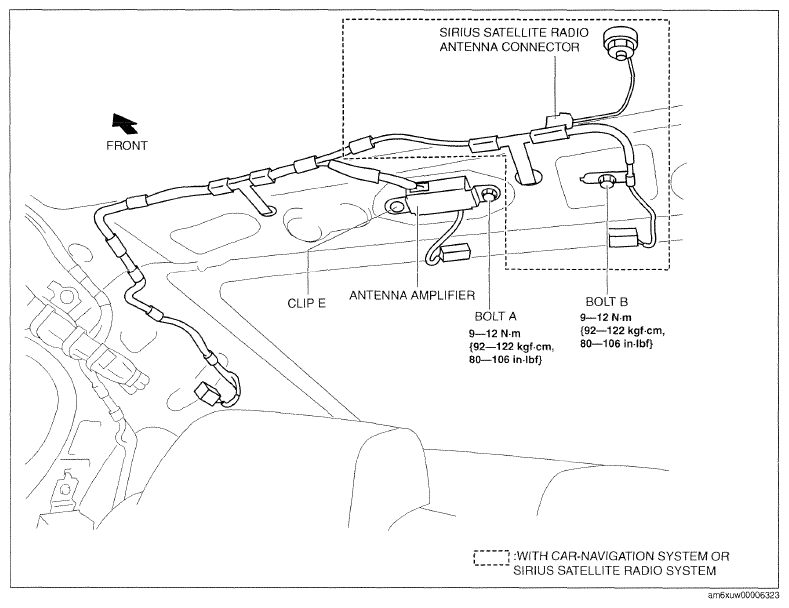

    Fig 3: Antenna Amplifier, Clips And Bolt With Torque Specifications
    G09788377Courtesy of MAZDA MOTORS CORP.
  6. Disconnect SIRIUS satellite radio antenna connector, (with SIRIUS satellite radio system)
  7. Remove the clip E.
  8. Remove the bolt A.
  9. Remove the antenna amplifier.
  10. Install in the reverse order of removal.
