SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove screw A.
  3. Remove the sunvisor in the direction of the arrow (1) shown in the figure while detaching hook B.

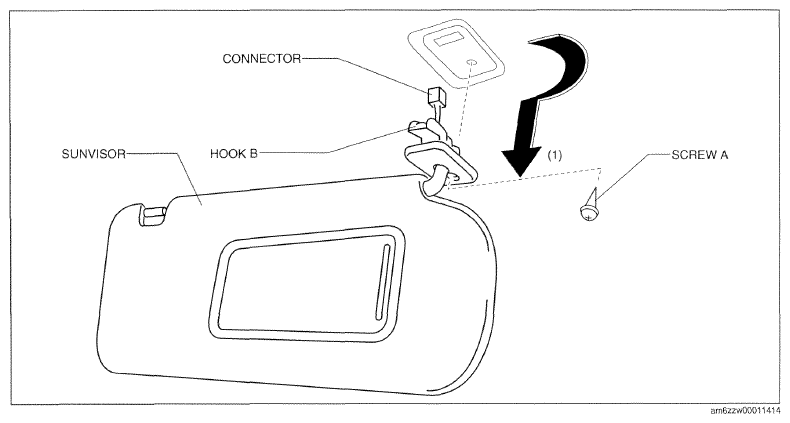

    Fig 1: Sunvisor
    G09788065Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrow (2) shown in the figure using two tape-wrapped flathead screwdrivers.

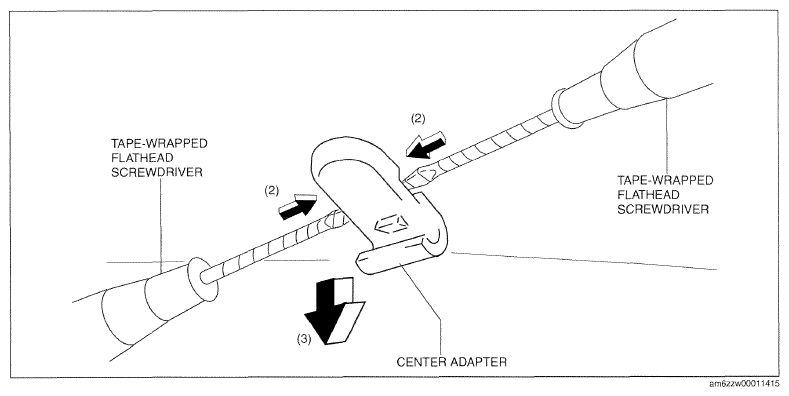

    Fig 2: Pressing Center Adapter Tabs
    G09788066Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (3) shown in the figure.
  7. Install in the reverse order of removal.
