Instrument Cluster Removal/Installation: Notes

CAUTION:

When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. Replacing the instrument cluster without performing the configuration procedure will result in system malfunction.

Perform the instrument cluster configuration when replacing it. (See INSTRUMENT CLUSTER CONFIGURATION )
Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF] )
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION )
Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION )
Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION )
Remove in the order indicated in the illustration.

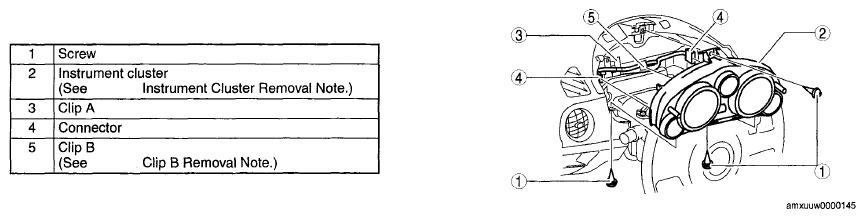

Fig 1: Instrument Cluster, Connector And Clip
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
When replacing the instrument cluster of vehicles with the immobilizer system, perform the following procedure:
- See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND START SYSTEM] )
  CAUTION:
  - The removed instrument cluster should be placed with the display side up to prevent grease from leaking from the meters.

    Fig 2: Immobilizer System Condition
    Courtesy of MAZDA MOTORS CORP.
