Washer Motor Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
  4. Remove the washer motor, then remove the grommet.
  5. Install in the reverse order of removal.

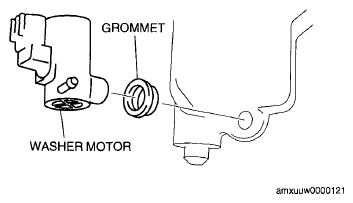

    Fig 1: Washer Motor And Grommet
    G06149088Courtesy of MAZDA MOTORS CORP.
