Washer Tank Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Disconnect the washer hose from joint pipe A.
  4. Remove the bolt and nut, then remove the washer tank.
  5. Disconnect the washer motor connector.
  6. Install in the reverse order of removal.

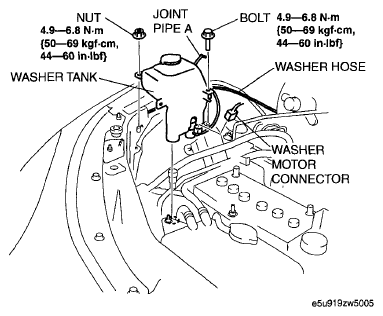

    Fig 1: Washer Tank And Washer Motor Connector With Torque Specifications
    G06149083Courtesy of MAZDA MOTORS CORP.
