Interlock Cable Adjustment

Turn the ignition switch to the ON position, (engine off)

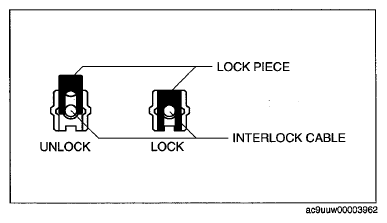

Pull up the lock piece of the interlock cable to release the lock.

Fig 1: Interlock Cable And Lock Piece
Courtesy of MAZDA MOTORS CORP.
Remove the clip of the selector lever base plate, then remove the interlock cable from the U-groove.
Remove the interlock cable from the selector lever component.

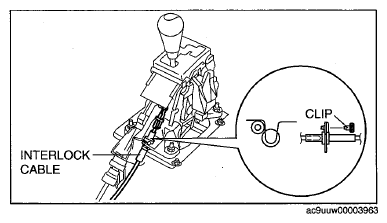

Fig 2: Interlock Cable And Clip
Courtesy of MAZDA MOTORS CORP.

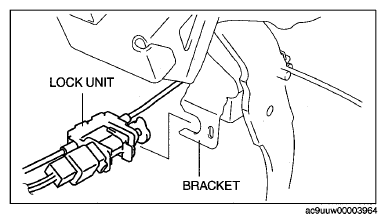

Remove the lock unit from the bracket.

Fig 3: Lock Unit And Bracket
Courtesy of MAZDA MOTORS CORP.

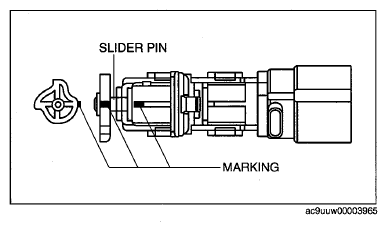

Verify that the marking on the slider pin is positioned as shown in the illustration.

Fig 4: Slider Pin Marking
Courtesy of MAZDA MOTORS CORP.

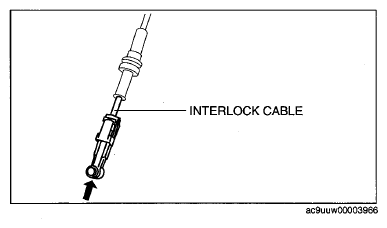

Push the interlock cable.

Fig 5: Interlock Cable
Courtesy of MAZDA MOTORS CORP.

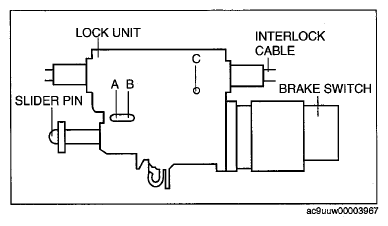

Insert a 1.5 mm {0.059 in} round bar or similar into hole A with the slider pin fully pushed in.

Fig 6: Lock Unit, Slider Pin, Interlock Cable And Brake Switch
Courtesy of MAZDA MOTORS CORP.

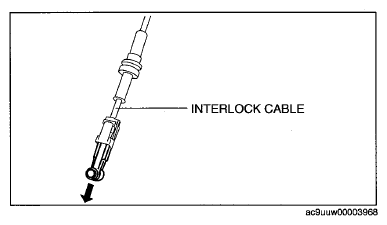

Fully pull the end of the interlock cable.

Fig 7: Interlock Cable
Courtesy of MAZDA MOTORS CORP.

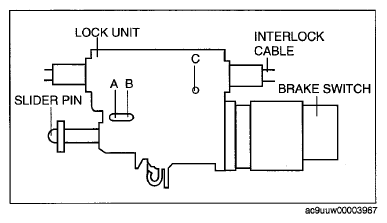

Push a 1.5 mm {0.059 in} round bar or similar into hole B and hole C of the lock unit until it passes through.
Disconnect the brake switch connector.
Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)
Install a new brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION .)
CAUTION:
- Do not connect the brake switch connector until the interlock cable adjustment is completed.
Fig 8: Lock Unit, Interlock Cable, Slider Pin And Brake Switch
Courtesy of MAZDA MOTORS CORP.
Install the lock unit to the bracket. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

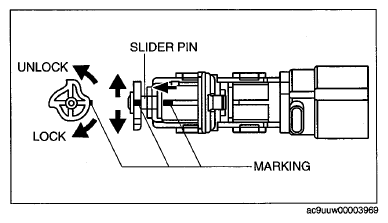

Rotate the slider pin to release the lock and verify that it slides freely.
Verify that the slider pin contacts the brake pedal stopper rubber and rotate the slider pin to lock.

Fig 9: Rotating Slider Pin To Lock Position
Courtesy of MAZDA MOTORS CORP.
Install the interlock cable end to the interlock link on the selector lever component.
Fit the interlock cable in the U-groove in the selector lever base plate and install the clip.

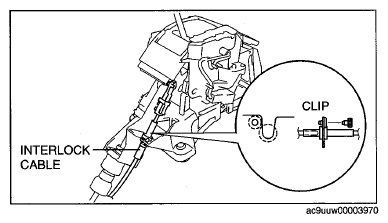

Fig 10: Interlock Cable And Clip
Courtesy of MAZDA MOTORS CORP.
Press the interlock cable lock piece in until it is locked.
CAUTION:
- Applying a load to the interlock cable while pressing the lock piece in can affect the lock unit operation.
Fig 11: Interlock Cable And Lock Piece
Courtesy of MAZDA MOTORS CORP.
Remove a 1.5 mm {0.059 in} round bar or similar from the lock unit holes A, B, and C.
Connect the brake switch connector with the brake pedal released.
CAUTION:
- The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch connector is connected after the brake switch has been properly installed. If the brake switch is not properly installed or the connector is connected before installation, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake switch is properly installed before connecting the connector.
- Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or performing any procedure that changes the pedal stroke.
Fig 12: Interlock Cable, Brake Switch, Slider Pin And Lock Unit
Courtesy of MAZDA MOTORS CORP.
Inspect shift lock operation. (See SHIFT-LOCK SYSTEM INSPECTION .)
