Automatic Transaxle Shift Mechanism Location Index

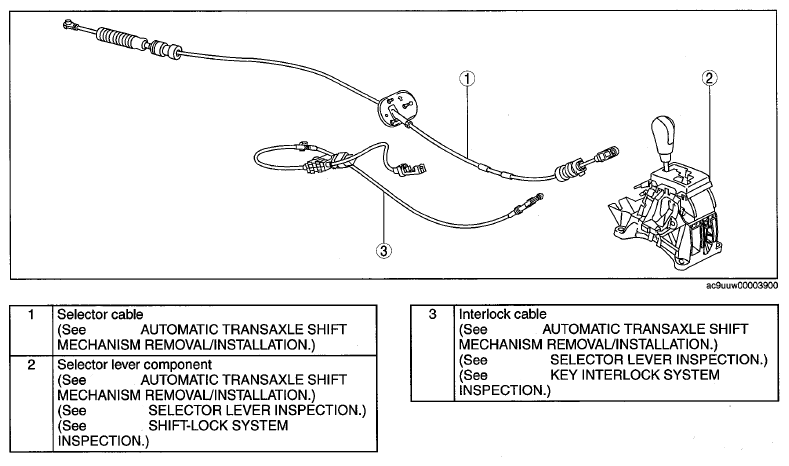

Fig 1: Automatic Transaxle Shift Mechanism Component Location Index

G07823096

Courtesy of MAZDA MOTORS CORP.
