Fuel Tank Side

2WD

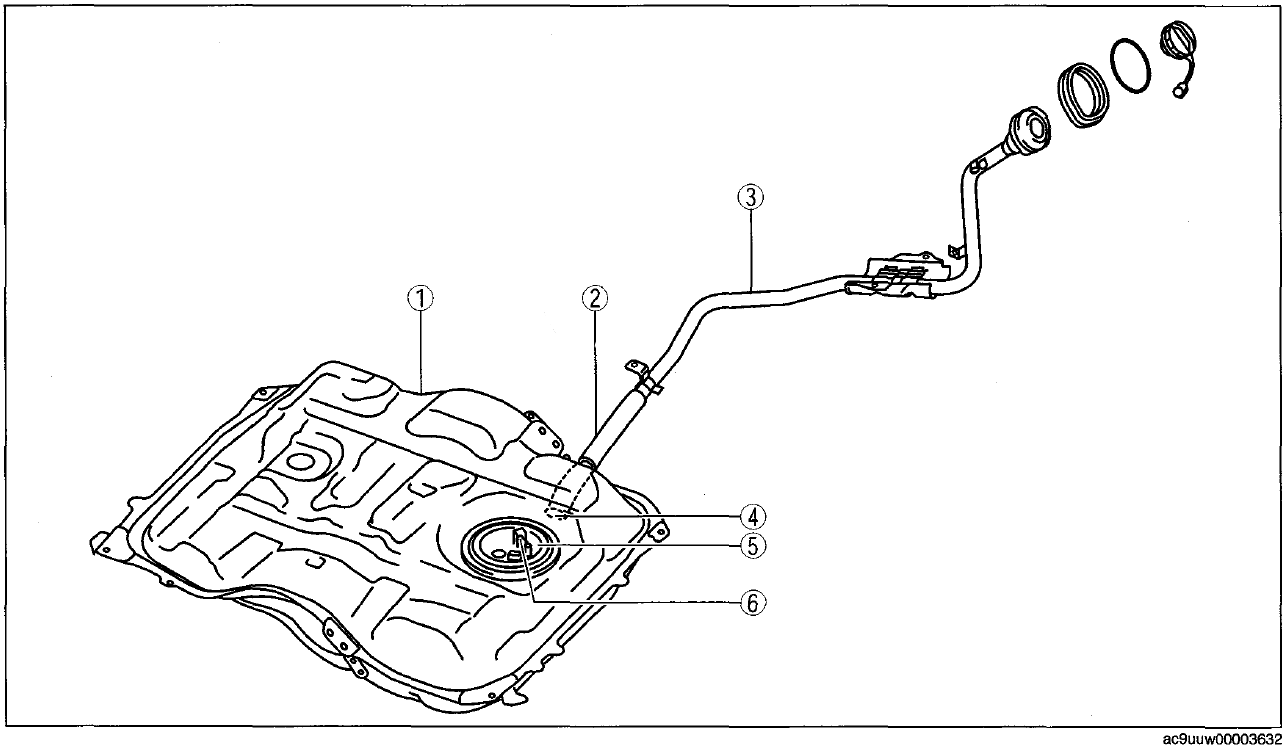

Fig 1: Identifying Fuel System Location - Fuel Tank Side (2WD)

Courtesy of MAZDA MOTORS CORP.

AWD

Fig 2: Identifying Fuel System Location - Fuel Tank Side (AWD)

Courtesy of MAZDA MOTORS CORP.

ITEM DESCRIPTION

1	Fuel Tank (See FUEL TANK REMOVAL/INSTALLATION .) (See 0 FUEL TANK INSPECTION .)
2	Joint Hose (See FUEL TANK REMOVAL/INSTALLATION .)
3	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION .)
4	Non-return valve (See NON-RETURN VALVE INSPECTION .)
5	Fuel Pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY (See FUEL PUMP UNIT INSPECTION
6	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION
