Fuel Pump Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

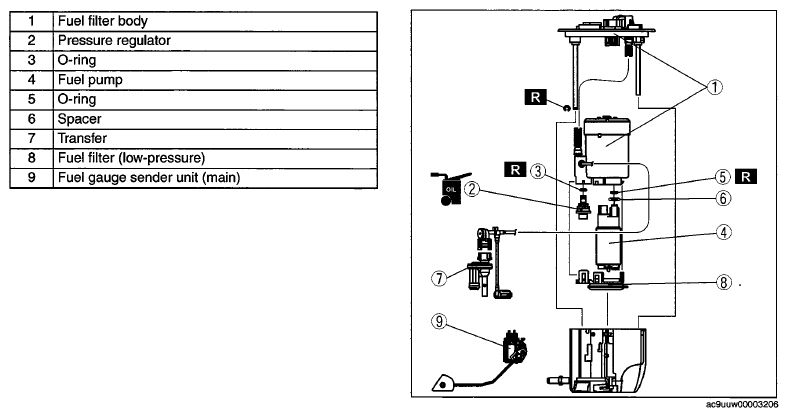

    Fig 1: Identifying Fuel Pump Unit Components
    G06727577Courtesy of MAZDA MOTORS CORP.
