Glass Panel Removal/Installation: Notes

  1. Fully open the sunshade.
  2. Fully close the glass panel.
  3. Remove screws.

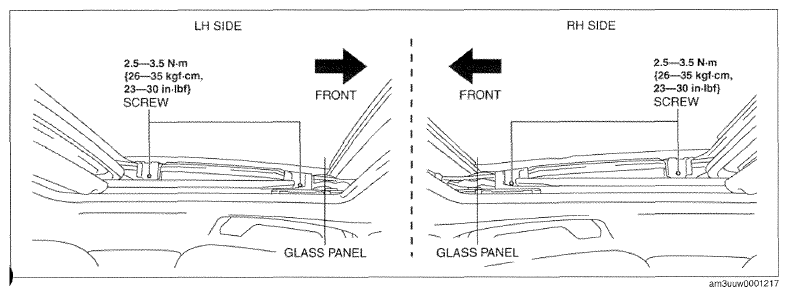

    Fig 1: Closing Glass Panel With Torque Specifications
    G09784015Courtesy of MAZDA MOTORS CORP.
  4. Remove the glass panel in the direction of the arrow (1) from sunroof unit.

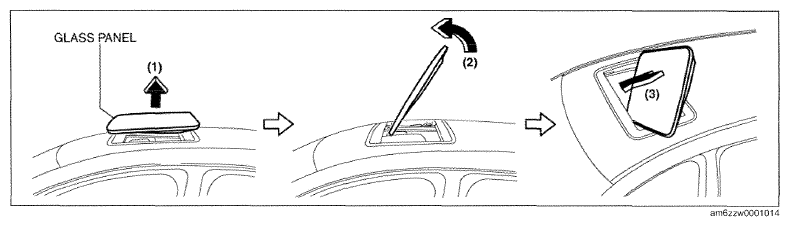

    Fig 2: Removing Glass Panel
    G09784016Courtesy of MAZDA MOTORS CORP.
  5. Move the glass panel in the order of arrows (2) and (3) shown in the figure and remove it from the cabin.
  6. Peel the weatherstrip off the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
  7. Install in the reverse order of removal.
