Weatherstrip Installation Note

  1. Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.

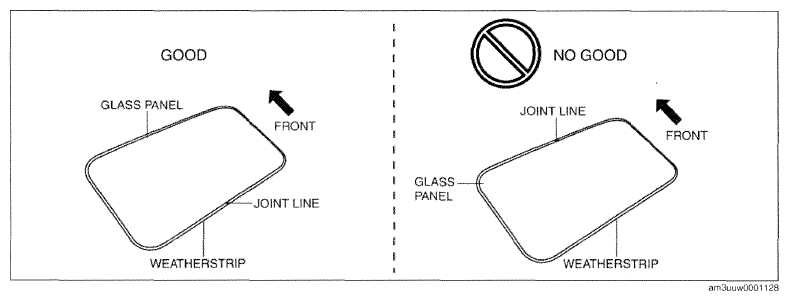

    Fig 1: Installing Weatherstrip To Glass Panel
    G09784017Courtesy of MAZDA MOTORS CORP.
