Hazard Warning Switch Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the decoration panel (passenger-side). (See DECORATION PANEL REMOVAL/INSTALLATION .)
Verify that the continuity between the hazard warning switch terminals is as indicated in the table.

Fig 1: Hazard Warning Switch Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

Fig 2: Hazard Warning Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If the continuity is as indicated in the table, go to the next step.
- If not as indicated in the table, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .

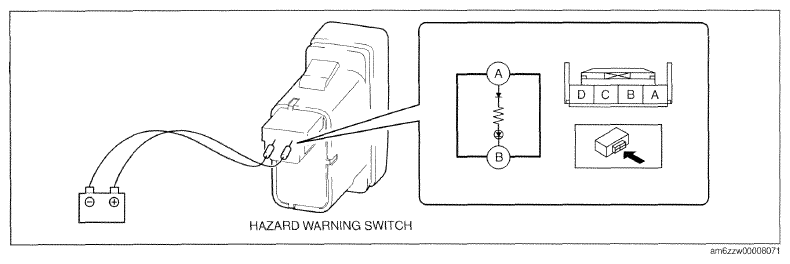

Apply battery voltage to hazard warning switch terminal A, and connect terminal B to ground.

Fig 3: Applying Battery Voltage To Hazard Warning Switch Terminal
Courtesy of MAZDA MOTORS CORP.
Verify that the LED illuminates.
- If the LED does not illuminate, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
