Rear Window Glass Removal

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION ).
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION ).
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION ).
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
    5. Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION ).
    6. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
    7. Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION ).

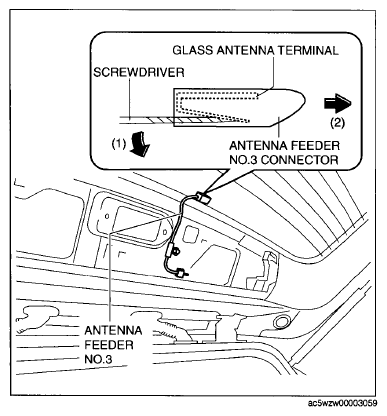

  3. Using a screwdriver wrapped in protective tape, pull the antenna feeder No.3 connector in the direction of the arrow (2) shown in the figure while pressing glass antenna terminal in the direction of the arrow (1) shown in the figure, and disengage the glass antenna terminal from the antenna feeder No.3 connector, (with SIRIUS satellite radio system)
  4. Disconnect the antenna feeder No.3 connector. (1) (with SIRIUS satellite radio system)
    Fig 1: Disconnecting Rear Window Glass Antenna Feeder No.3 Connector Using Screwdriver
    G09076685

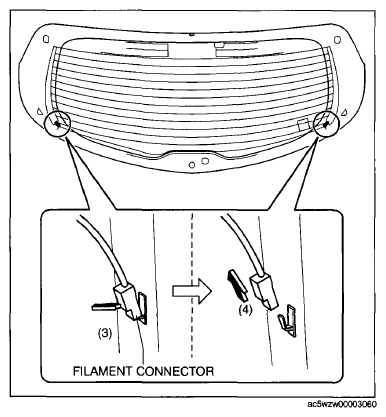

  5. Disconnect the filament connectors in the direction of the arrow in the order of (3), (4) shown in the figure.
    Fig 2: Disconnecting Rear Window Glass Filament Connectors
    G09076686
  6. Apply protective tape along the edge of the body.
    NOTE:
    • Overlap and adhere the protective tape to the corners to prevent damage.
    Fig 3: Identifying Protective Tape Application Area
    G09076687
  7. Avoiding the pin on the inside of the vehicle, insert piano wire which has been cut to sufficient length.
    WARNING:
    • Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.
    NOTE:
    • Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.
    Fig 4: Caution For Using Piano Wire
    G09076688
  8. Wind each end of piano wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.
  9. Secure one end of piano wire, and while pulling the other end, cut the sealant around the rear window glass.
    Fig 5: Securing One End Of Piano Wire
    G09076689
  10. Pinch pins from the inside of the vehicle and detach it.
  11. Remove the rear window glass.
    Fig 6: Identifying Rear Window Glass Pins
    G09076690
