Liftgate Recess Removal/Installation

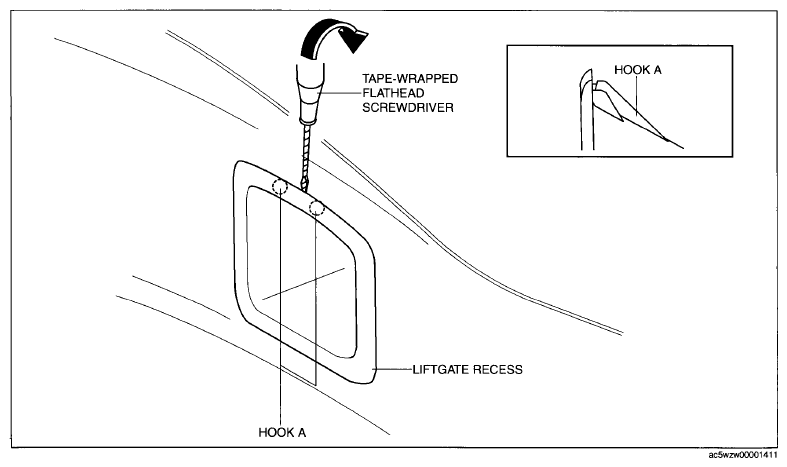

  1. Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow in the figure and detach hooks A.
    Fig 1: Removing Liftgate Recess Using Tape-Wrapped Flathead Screwdriver
    G09077215

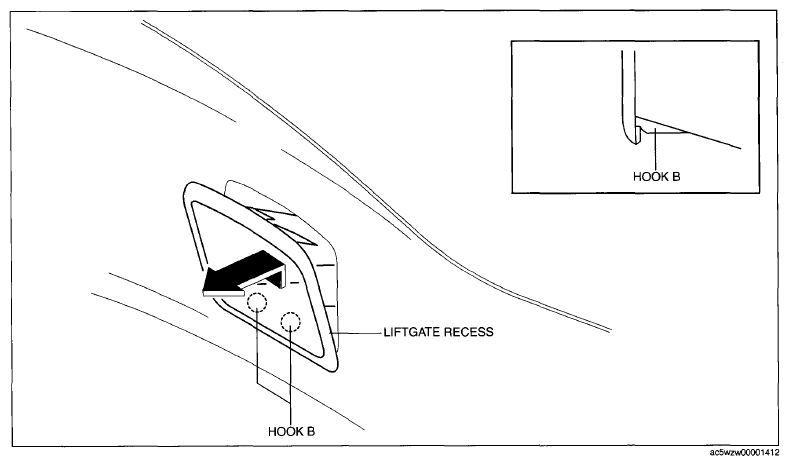

  2. Remove the liftgate recess in the direction of the arrow shown in the figure avoiding hooks B.
    Fig 2: Removing Liftgate Recess
    G09077216
  3. Install in the reverse order of removal.
