Front Passenger Side

To access the glass installation bolt, adjust the position of the front door glass so that the height of the door glass towards the rear is approx. 105 mm {4.13 in} .

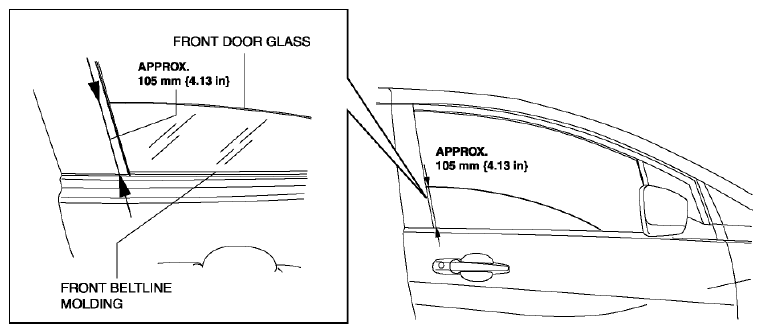

Fig 1: Identifying Front Door Glass Height At Front Beltline Molding
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
6. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
Disconnect the rod from the front outer handle.
Remove the service hole cover.

Fig 2: Identifying Service Hole Cover
Remove the bolts.

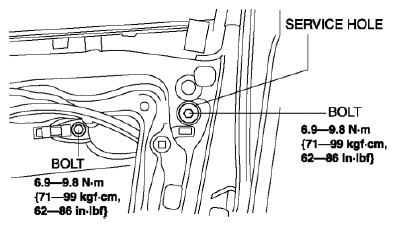

Fig 3: Service Hole And Bolts With Torque Specifications
Secure the rear part of the front outer handle and, with the front outer handle lever pulled outward (1), remove the rear part of the front outer handle from the front door.

Fig 4: Removing Rear Part Of Front Outer Handle From Front Door
Pull out the front side of the front outer handle from the front door.
Install in the reverse order of removal.
