Front Door Module Panel Removal/Installation

  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 105 mm {4.13 in}  .

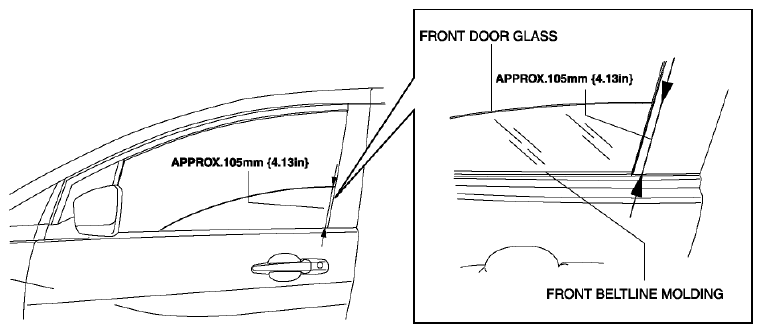

    Fig 1: Identifying Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding
    G08152759
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  4. Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  5. Disconnect the front door wiring harness connector. (See FRONT DOOR REMOVAL/INSTALLATION .)
  6. Release the tabs and remove the front door harness bracket.

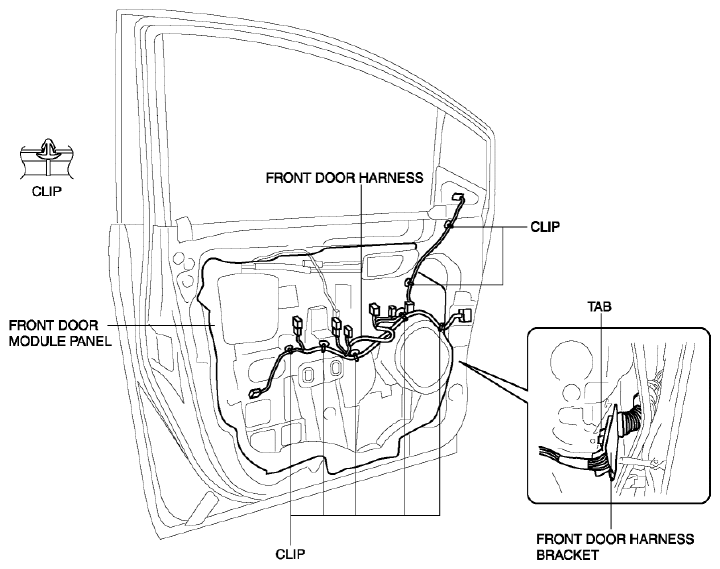

    Fig 2: Identifying Front Door Harness Bracket, Harness, Clip And Tab
    G08152760
  7. Remove the clips securing the front door wiring harness from the front door module panel.
  8. Remove the fastener.

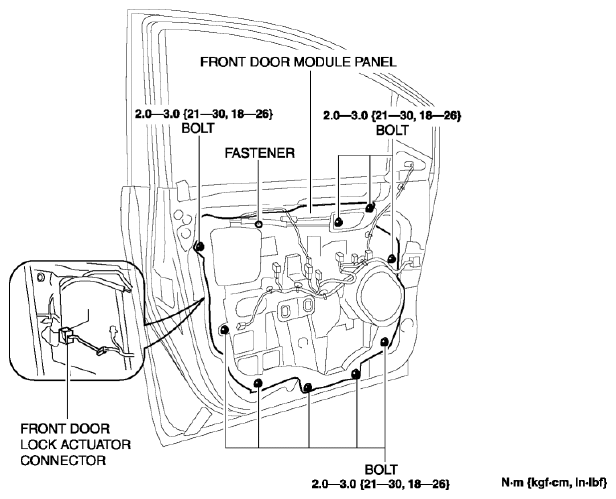

    Fig 3: Front Door Module Panel, Lock Actuator Connector And Bolts With Torque Specifications
    G08152761
  9. Remove the bolts.
  10. Pull the front door module panel outward.
  11. Disconnect the front door lock actuator connector.
  12. Remove the front door module panel.
  13. Install in the reverse order of removal.
