Front Door Key Cylinder Removal/Installation

  1. To access the glass installation bolt, adjust the position of the front door glass so that the height of the door glass towards the rear is approx. 105 mm {4.13 in}  .

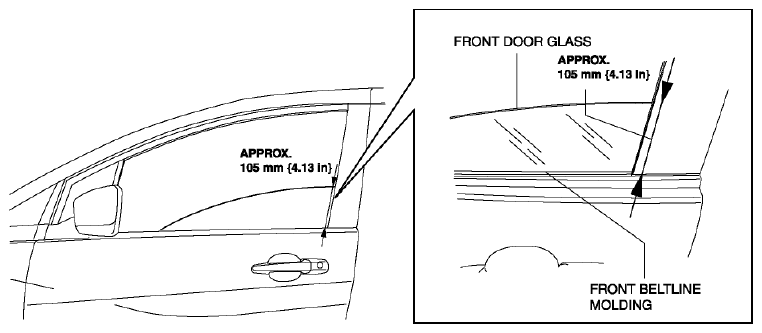

    Fig 1: Height Of Door Glass Measured Toward The Rear
    G08153058
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    7. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Remove the bolt.
    Fig 2: Service Hole And Bolt With Torque Specifications
    G08153059
  5. Turn the front door key cylinder and move the tab to the notch. (1)
    Fig 3: Turning Front Door Key Cylinder
    G08153060
  6. Remove the front door key cylinder.
  7. Install in the reverse order of removal.
