Map Light Inspection

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in the table.

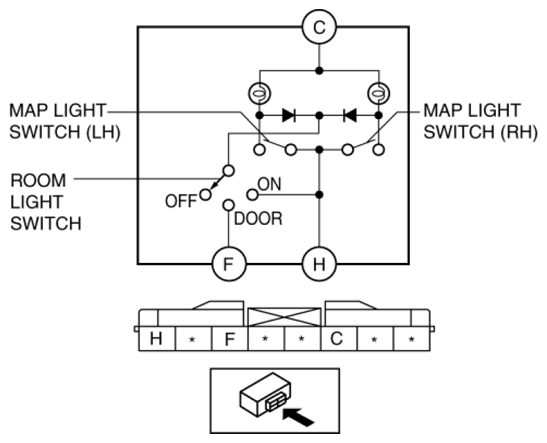

Fig 1: Identifying Map Light Connector Terminals
- If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the map light.

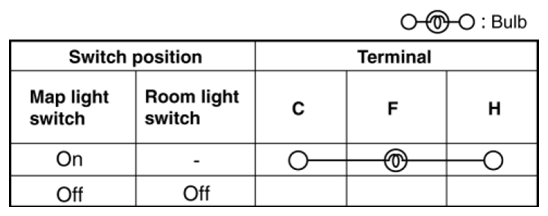

  Fig 2: Map Light Terminal Continuity Chart
Apply battery positive voltage to map light terminal C, and connect terminal F to ground.
Switch the interior light switch to the DOOR position and verify that the map light illuminates.
- If the light does not illuminate, replace the map light.
