Map Light Removal/Installation

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the tabs shown in the figure.

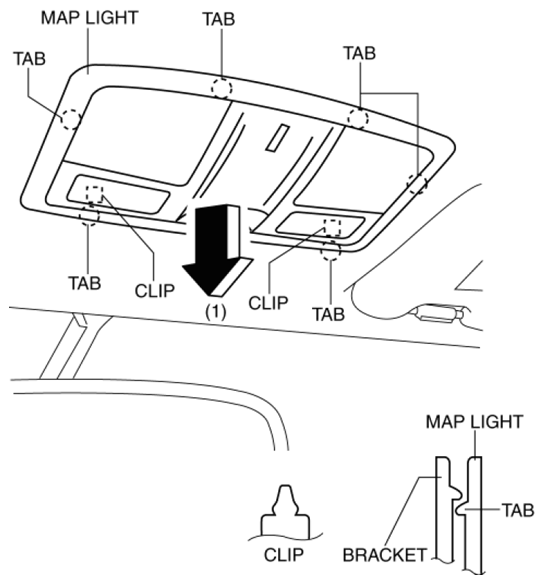

    Fig 1: Map Light Mounting
    G08159283
  3. Pull the map light in the direction of the arrow (1) shown in the figure and remove the map light while detaching the clips.
  4. Disconnect the connector.

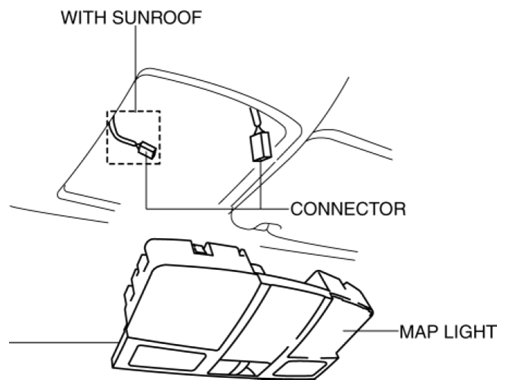

    Fig 2: Map Light And Connector
    G08159284
  5. Install in the reverse order of removal.
