Vehicles With Auto Light System

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity between the light switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the light switch.

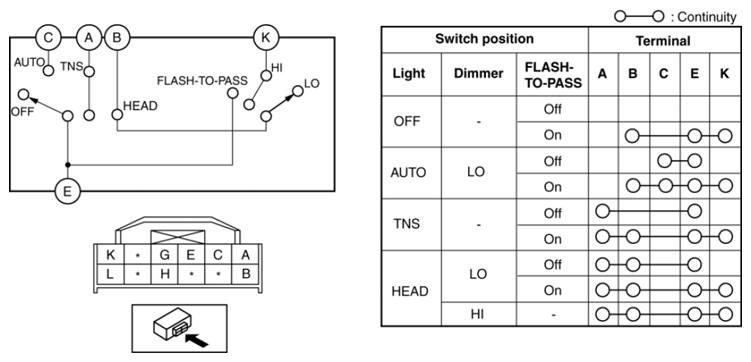

      Fig 1: Identifying Light Switch Connector Terminals And Continuity Chart - With Auto Light System
      G08159272

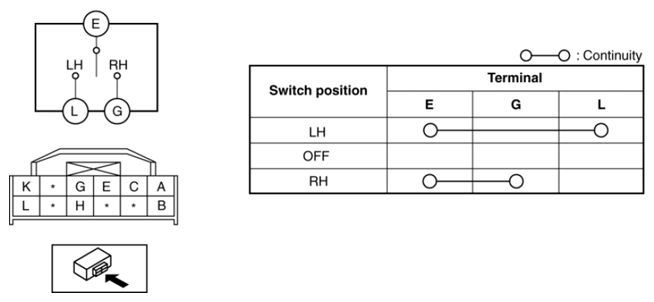

      Fig 2: Identifying Turn Switch Connector Terminals And Continuity Chart - With Auto Light System
      G08159273
