Light Switch Removal/Installation
WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Disconnect the connector.

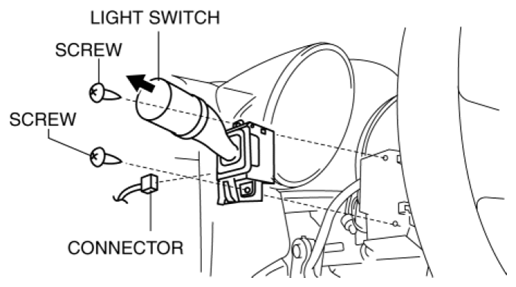

- Remove the screws shown in the figure, then remove the light switch by pulling it in the direction of the arrow.
- Install in the reverse order of removal.
