Front Fog Light Switch Inspection
WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)

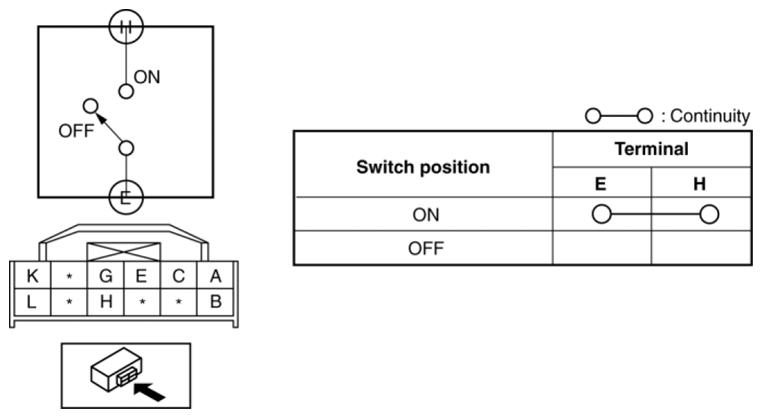

- Verify that the continuity between the front fog light switch terminals is as indicated in the table.
- If not as indicated in the table, replace the light switch.
