Outer Mirror Garnish Removal/Installation
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the outer mirror glass from the outer mirror. (See OUTER MIRROR GLASS REMOVAL .)

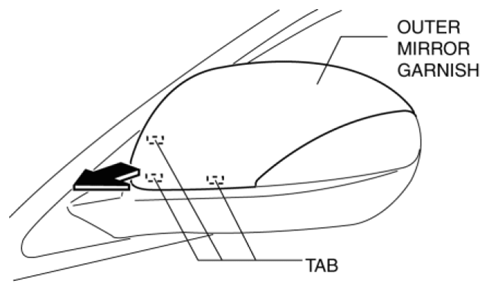

- Pinch the end of the tab which is visible, and release the tab by pressing it toward the vehicle front (3 locations).

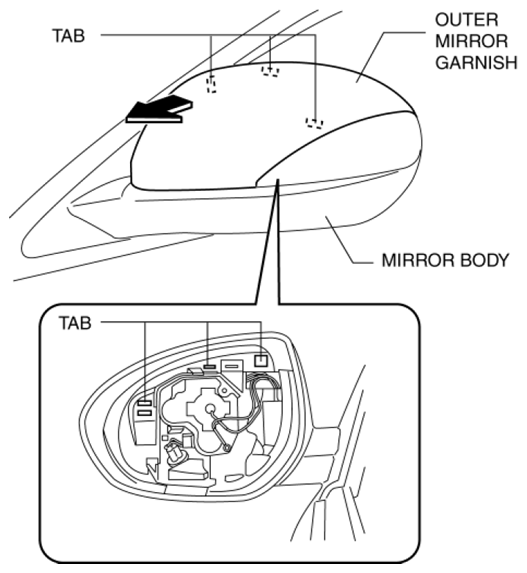

- Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.
- Install in the reverse order of removal.
