Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.
  2. Press area B of the mirror glass so that area A moves outward.

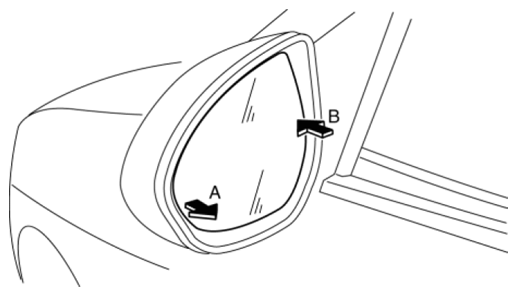

    Fig 1: Pressing Area B Of Mirror Glass Area
    G08158645
  3. Detach pin B while lifting up the inside of the mirror glass holder.

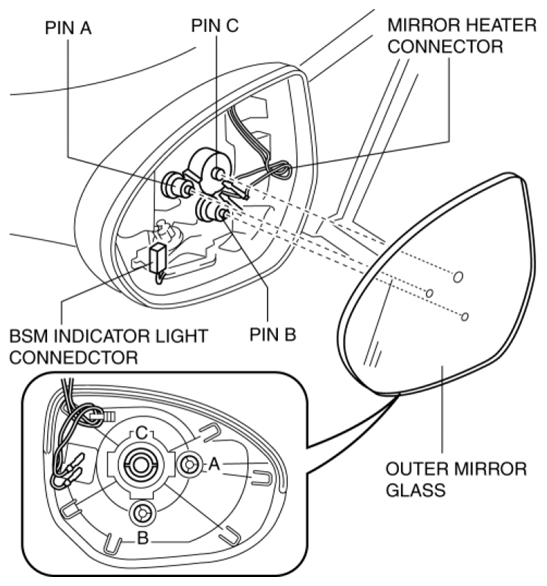

    Fig 2: Lifting Up Inside Of Mirror Glass Holder
    G08158646
  4. Pull the mirror glass holder and remove pins A and C.
  5. Disconnect the mirror heater connectors. (Vehicles with heated outer mirrors)
  6. Disconnect the BSM indicator connector. (Vehicles with BSM system)
  7. Remove the mirror glass holder and the outer mirror glass as a single unit.
