Liftgate Lock Actuator Inspection

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  3. Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.
    Fig 1: Inspecting Latch Lever Condition
    G09133435
  5. Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.
    • If not as indicated in the table, replace the liftgate latch and lock actuator.
    Lock actuator operation Terminal
    B+ Ground
    UNLATCH D B

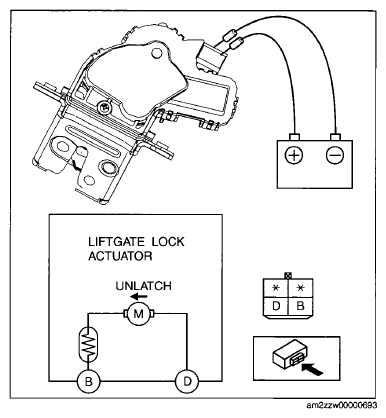

    Fig 2: Liftgate Lock Actuator Circuit Diagram
    G09133436
