Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

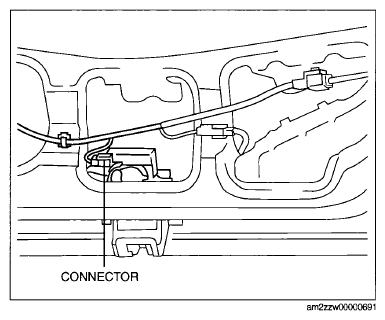

    Fig 1: Identifying Liftgate Latch And Lock Actuator Connector
    G09133432
  4. Remove the bolts.
  5. Remove the liftgate latch and lock actuator.
  6. Install in the reverse order of removal.

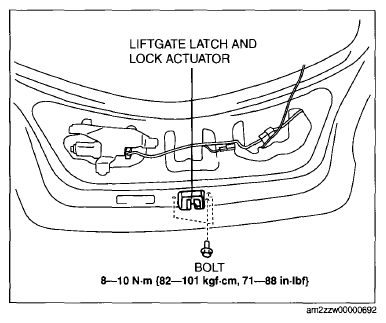

    Fig 2: Liftgate Latch And Lock Actuator Bolt With Torque Specifications
    G09133433
