Liftgate Latch And Lock Actuator

The following actuator and switch are integrated with the liftgate latch and lock actuator. Inspect the liftgate latch and lock actuator according to each inspection procedure for the following items.
- Liftgate latch switch (See LIFTGATE LATCH SWITCH INSPECTION ).
- Liftgate lock actuator (See LIFTGATE LOCK ACTUATOR INSPECTION ).

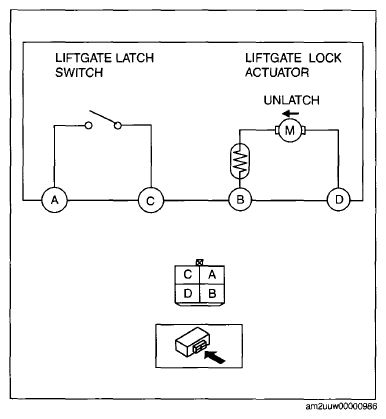

  Fig 1: Liftgate Latch And Lock Actuator Circuit Diagram
