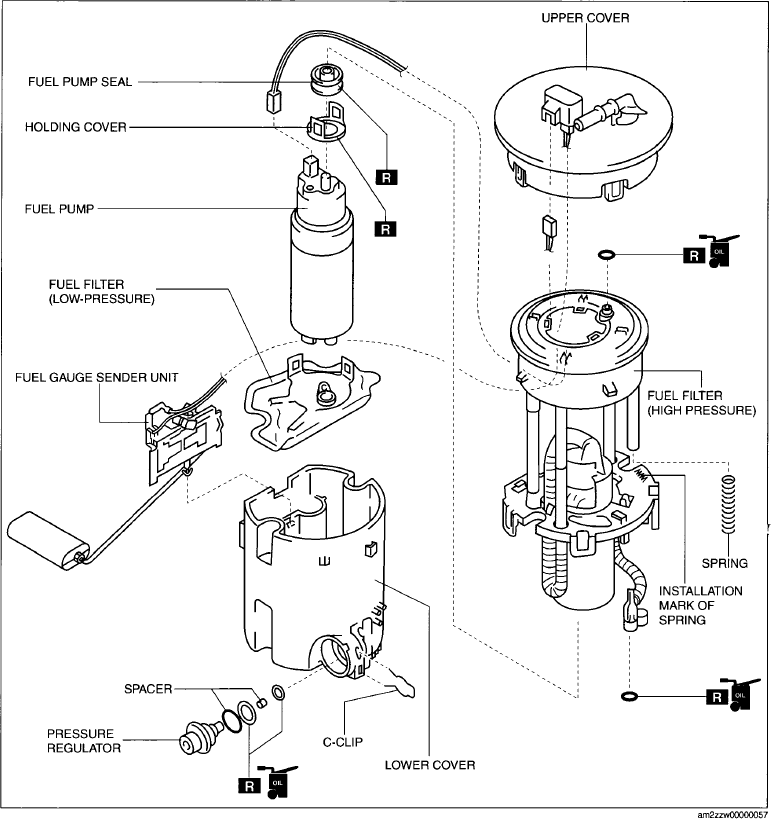

Fuel Pump Unit Structural View
| Part removed | Required part removal | ||||
|---|---|---|---|---|---|
| Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL .) (See FUEL GAUGE SENDER UNIT INSTALLATION ). | Pressure regulator (See PRESSURE REGULATOR REMOVAL .) (See PRESSURE REGULATOR INSTALLATION ). | Fuel pump (See FUEL PUMP REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION ). | Fuel filter (low-pressure) (See FUEL FILTER (LOW-PRESSURE) REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION ). | Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION ). | |
| Fuel gauge sender unit | X | - | - | - | - |
| Pressure regulator | X | X | - | - | - |
| Fuel pump | X | - | X | X | - |
| Fuel filter (low-pressure) | X | - | - | X | - |
| Fuel filter (high-pressure) | X | - | X | X | X |
