Pressure Regulator Installation
- Verify that two spacers and two O-rings are installed to the pressure regulator.
- Apply clean oil to a new O-ring.
- Install the pressure regulator.
- Install the C-clip.
- Install the fuel gauge sender unit to lower cover.

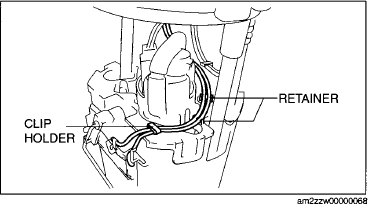

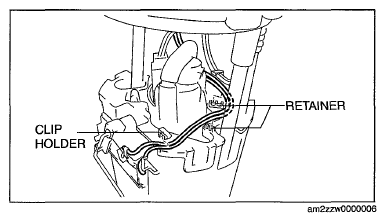

- Secure the fuel gauge sender unit wiring harness in the clip holder and two retaining slots.
