No.5 Programming Procedure Due to Instrument Cluster Replacement: Procedure

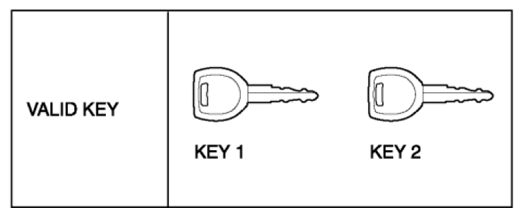

Fig 1: Identifying Valid Keys
G08247569
Step Procedure Action after procedure
1 REPLACE INSTRUMENT CLUSTER
Refer to Instrument cluster removal/installation to perform instrument cluster replacement and configuration.
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER CONFIGURATION .)		 Go to the next step.
2 PERFORM PARAMETER RESET
  • Connect the M-MDS to the DLC-2.

    (See M-MDS CONNECTING PROCEDURE .)

  • Turn the ignition switch to the ON position using a valid key.
    NOTE:
    • Although the security light remains illuminated and DTC 15 is displayed after approx. 1 min  , continue to perform the procedure as indicated.
  • Verify that the keyless warning light illuminates for approx. 3 s  , and then turns off.
  • After vehicle identification, select the following from the M-MDS initial screen.
    • Using an IDS (laptop PC):
      • Select the "Body"
      • Select the "Security"
      • Select the "PATS Functions"
    • Using a PDS (Pocket PC):
      • Select the "All Tests and Calibrations"
      • Select the "PATS Functions"
  • Select "Parameter Reset" from the M-MDS screen menu.
  • Perform the security access according to the directions on the M-MDS screen.

    (See SECURITY ACCESS PROCEDURE .)

  • Select the replaced parts "IC" according to the directions on the M-MDS screen.
    CAUTION:
    • At this time, do not select the other parts from the M-MDS menu.
  • Verify that the PATS function menu is displayed again on the M-MDS screen.
 Go to the next step.
3 CLEAR IGNITION KEY ID NUMBERS
  • Select "Ignition Key Code Erase and Program" from the M-MDS screen menu.
  • Clear the ignition key ID number according to the directions on the M-MDS.
 Go to the next step.
4 PERFORM IGNITION KEY ID NUMBER PROGRAMMING
  • Program two keys according to the directions on the M-MDS.
  • After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)".
  • Turn the ignition switch to the LOCK position.
  • Turn the ignition switch to the ON position.
  • Verify that the security light illuminates for approx. 3 s  , and then turns off.
  • Turn the ignition switch to the LOCK position.
  • Disconnect the M-MDS from the DLC-2.
 Go to the next step.
5 VERIFY PROGRAMMING IS PERFORMED CORRECTLY
  • Verify that the engine can be started with all the keys.
  • Can the engine be started?
 Yes Procedure is completed
No Perform the corresponding DTC inspection to repair the malfunctioning part.
