Security Access Procedure

  1. Connect the M-MDS to DLC-2.

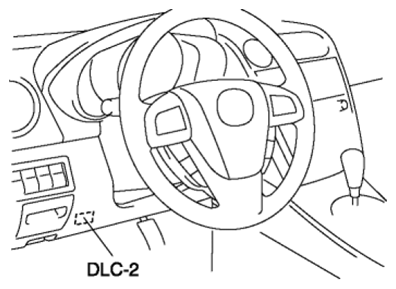

    Fig 1: Identifying DLC-2
    G08247608
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      • Select the "Body".
      • Select the "Security".
      • Select the "PATS Functions".
    • When using the PDS (Pocket PC)
      • Select the "All Tests and Calibrations".
      • Select the "PATS Functions".
  3. Then, select an item from the screen menu.
    • "Program Additional Advanced Key"
    • "Advanced Key Code Erase and Program"
    • "Steering Lock Unit Programming"
    • "Program Additional Ignition Key"
    • "Ignition Key Code Erase and Program"
    • "Customer Spare Key Programming Enable"
    • "Customer Spare Key Programming Disable"
    • "Parameter Reset"
  4. The security access begins and the M-MDS displays "OUT-CODE".
    NOTE:
    • When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times will change the "OUT-CODE".
  5. Input the "IN-CODE" that corresponds to the "OUT-CODE" displayed on the M-MDS screen.
  6. Perform the procedure according to the directions on the screen.
