Using M-MDS
- Fully lower the driver-side door glass.

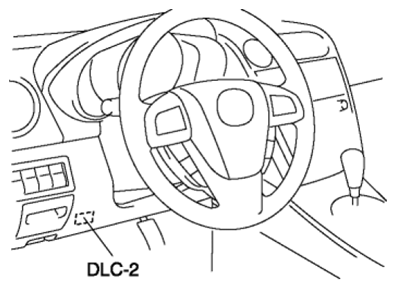

- Connect the M-MDS to the DLC-2.
- Set the M-MDS outside the vehicle with its cable passing through the door glass opening.
CAUTION:
- Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.
- After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
- Select "Body".
- Select "Security".
- Select "PATS Functions".
- When using the PDS (Pocket PC)
- Select "All Tests and Calibrations".
- Select "PATS Functions".
- Then, select an item from the screen menu.
- Select the "Program Additional Advanced key"
- Perform the security access according to the directions on the M-MDS screen. (See SECURITY ACCESS PROCEDURE .)
- The security access is initiated, and the M-MDS displays, "Acquire security access".
NOTE:
- When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times
will change the "OUT-CODE".
- Follow the instructions on the M-MDS screen, obtain the "IN-CODE" corresponding to the "OUT-CODE".
- Input the "IN-CODE" corresponding to the "OUT-CODE" displayed on the M-MDS screen.
NOTE:
- After Step 9 is completed and the additional advanced key programming is activated, the door lock actuator operates to lock, and then operates to unlock.
- Press the UNLOCK button of the unprogrammed advanced key 2 times while in the vehicle.
NOTE:
- After Step 10 is completed and the advanced key is programmed, the door lock actuator operates to lock, and then operates to unlock.
- If additional advanced keys are to be programmed, go to the additional advanced key programming mode according to the instructions on the M-MDS screen.
