Front Outer Handle Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

Fig 1: Positioning Front Door Glass

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable
Remove the following parts
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .
6. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
Disconnect the keyless antenna connector (With advanced keyless entry and push button start system).

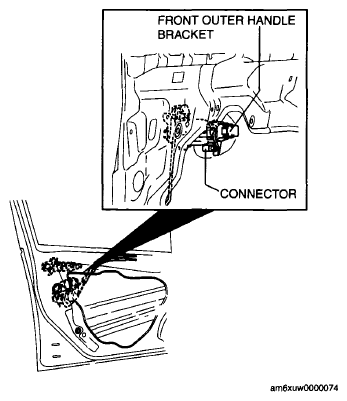

Fig 2: Identifying Keyless Antenna Connector
Courtesy of MAZDA MOTORS CORP.
Remove the front outer handle.
Remove the screw.
NOTE:
- The screw cannot be removed because of the stopper.
Fig 3: Removing Front Outer Handle
Courtesy of MAZDA MOTORS CORP.

Fig 4: Identifying Screw On Front Outer Handle
Courtesy of MAZDA MOTORS CORP.
Press down the rod holder in the direction of arrow (1) shown in the figure and remove the front outer handle bracket in the direction of arrow (2).

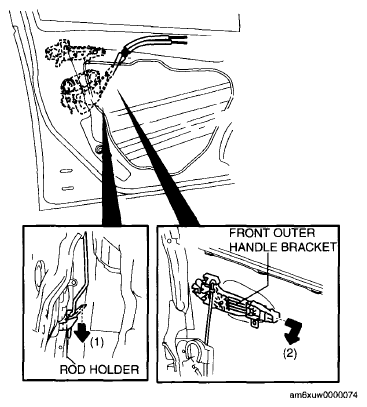

Fig 5: Pressing Down Rod Holder

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
