Front Door Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

Fig 1: Positioning Front Door Glass

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable.
Remove the following parts.
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
Remove the service hole cover.

Fig 2: Identifying Service Hole Cover

Courtesy of MAZDA MOTORS CORP.

Remove the screw from the service hole.
NOTE:
- The screw cannot be removed because of the stopper.
Fig 3: Identifying Service Hole Screw
Courtesy of MAZDA MOTORS CORP.
Lift the clip in the direction of the arrow (1) shown in the figure, and pull out the key rod in the direction of the arrow (2).

Fig 4: Pulling Out Key Rod
Courtesy of MAZDA MOTORS CORP.

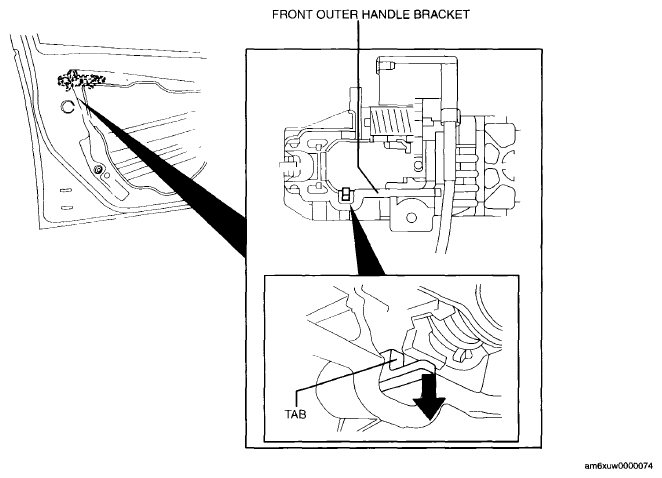

Press the tab on the front outer handle bracket in the direction of the arrow shown in the figure.

Fig 5: Identifying Tab On Front Outer Handle Bracket
Courtesy of MAZDA MOTORS CORP.
Maintaining the condition in Step 7, remove the front key cylinder

Fig 6: Removing Front Key Cylinder
Courtesy of MAZDA MOTORS CORP.

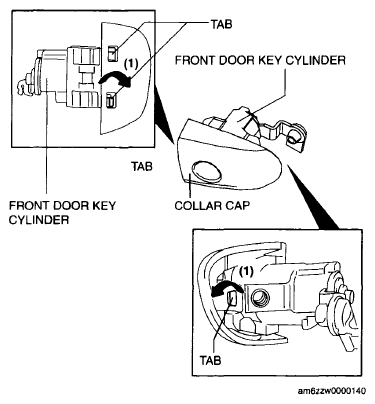

Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the figure, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

Fig 7: Identifying Front Door Key Cylinder Tabs

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
