Glass Panel Removal/Installation

Fully close the glass panel.
Fully open the sunshade.
Disconnect the negative battery cable.
Remove the screws, and then remove the glass panel.

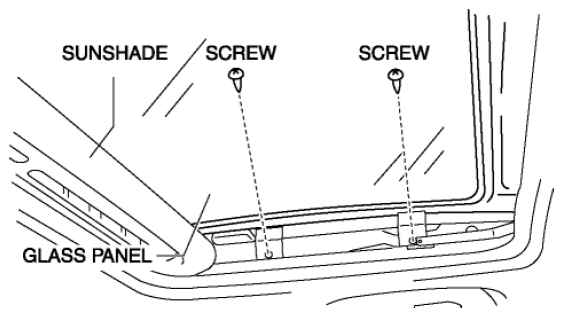

Fig 1: Identifying Glass Panel, Sunshade And Screws
Peel the weatherstrip off the glass panel.

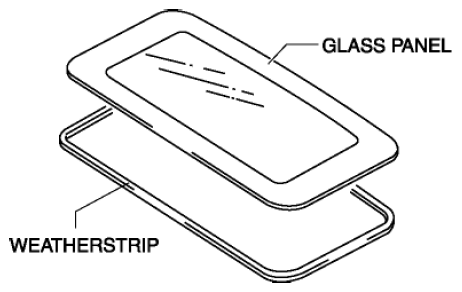

Fig 2: Peeling Weatherstrip Off Glass Panel
Install in the reverse order of removal.
Adjust the glass panel. (See GLASS PANEL ADJUSTMENT .)
