Glass Panel Adjustment
- Fully close the glass panel.

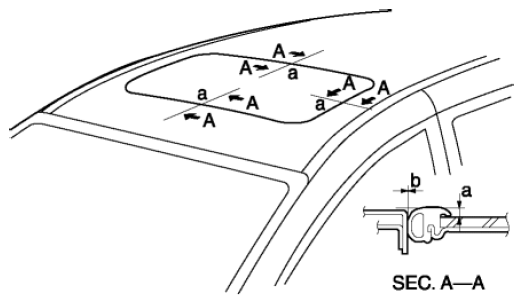

- Measure the gap and height difference between the glass panel and the body.
- Loosen the glass panel installation screws and move the glass panel to adjust.
Standard clearance
- a: -2.7-0.0 mm {-0.10-0.00 in}
- b: 0 mm {0 in}
- Tighten the screws.

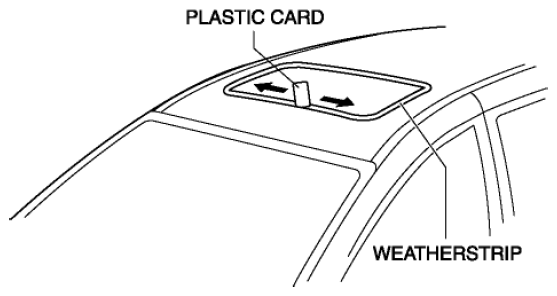

- Insert any available thin plastic card between the weatherstrip and the body, and verify that they are sealed. (There is resistance when the plastic card is moved.)
- If they are not sealed, perform Steps 3-4 and adjust again.
