Center Console Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  3. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

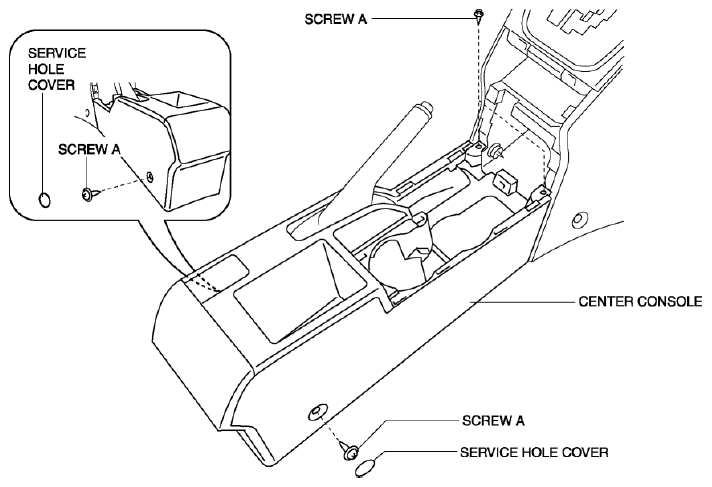

  4. Remove the service hole cover, then remove the screws A.
    Fig 1: Identifying Center Console, Service Hole Cover And Screws A
    G08153260

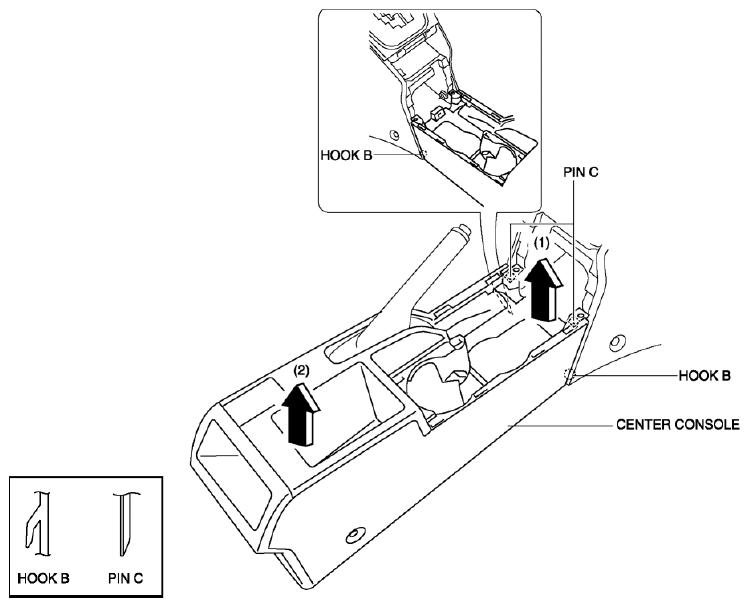

  5. Pull the center console in the direction of the arrow (1), (2) while remove the hooks B and pins C.
    Fig 2: Pulling Center Console
    G08153261
  6. Disconnect the rear fan switch connector. (See REAR FAN SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
  7. Remove the center console.
  8. Install in the reverse order of removal.
