Center Console Box Removal/Installation

  1. Disconnect the negative battery cable.
  2. Pull the center console box in the direction of the arrow (1), (2), (3) shown in the figure while detaching hook A, pin B and clip C.

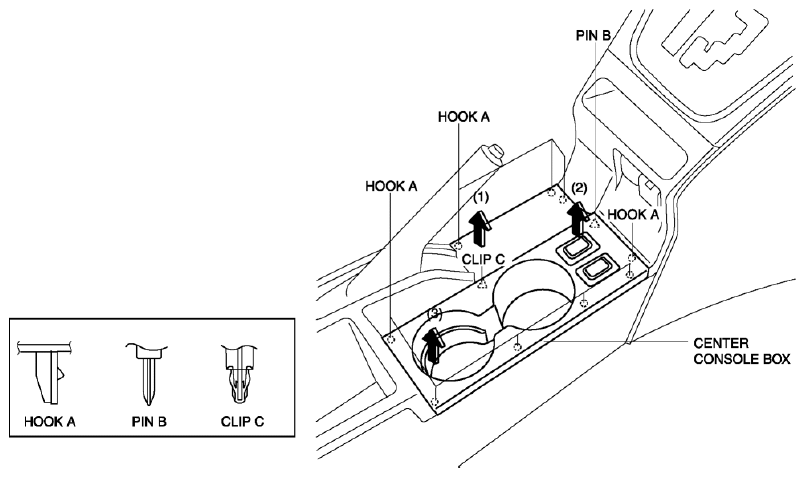

    Fig 1: Detaching Center Console Box Hook A, Pin B And Clip C
    G08153214
  3. Disconnect the seat warmer switch connector. (Vehicles with seat warmer)
  4. Remove the center console box.
  5. Install in the reverse order of removal.
