Keyless Beeper Inspection

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the keyless beeper. (See KEYLESS BEEPER REMOVAL/INSTALLATION .)
  4. When applying battery positive voltage to the keyless beeper, verify that an electromagnetic sound is heard.

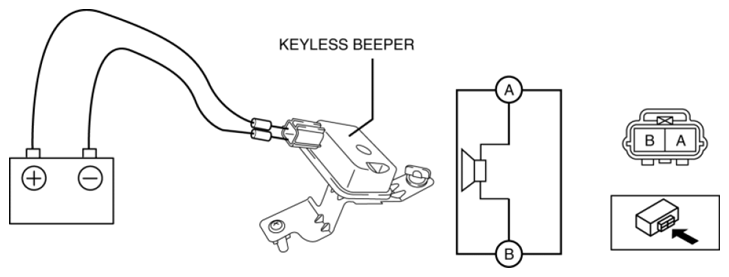

    Fig 1: Applying Voltage Between Keyless Beeper Connector Terminals
    G08158888
    • If the sound cannot be verified, replace the keyless beeper.
