Continuity Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)

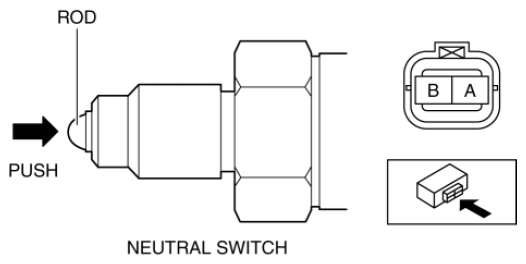

- Inspect for continuity between neutral switch terminal A and B.
- If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
SPECIFICATIONMeasured condition Continuity Rod pushed Continuity detected Except above No continuity
