Neutral Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  3. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)
  4. Install in the reverse order of removal.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

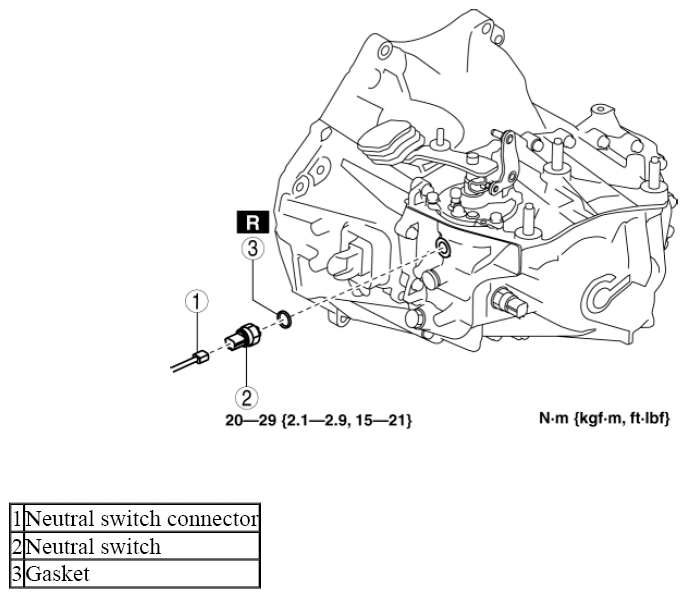

Fig 1: Neutral Switch With Torque Specifications
G08157316
