Knock Sensor (KS) Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the KS connector.

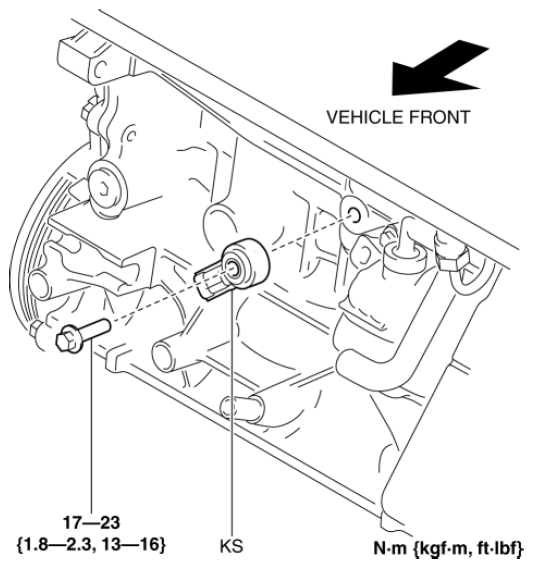

- Remove the KS. (See KS INSTALLATION NOTE .)
- Install in the reverse order of removal.
