KS Installation Note
WARNING: This page is about a different variant/trim than selected.
- Verify that there is no foreign matter caught between the KS unit and cylinder block.

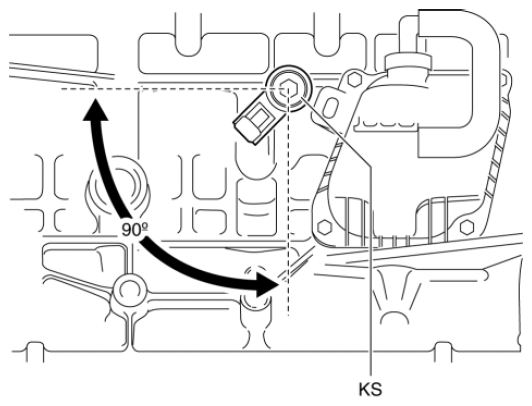

- The direction of the KS connector is within the 90-degree angle range shown in the figure.
